UK series universal terminal blocks
Professional manufacturing, widely used in electrical equipment and automation control, providing you with reliable connection solutions.
Product features
Multiple specifications
2.5/4/6/10 mm² options covering various current needs.
Premium materials
Flame-retardant PA66 housing with excellent insulation and strength.
Easy installation
Standard 35 mm DIN rail for time-saving assembly and maintenance.
Safe and reliable
Compliant with IEC standards and CE certified.
Multiple colors
Gray/Blue/Yellow-Green/Red for easy identification.
Wide applications
Applicable to distribution boards, control panels, and machinery.
UK series universal terminal blocks

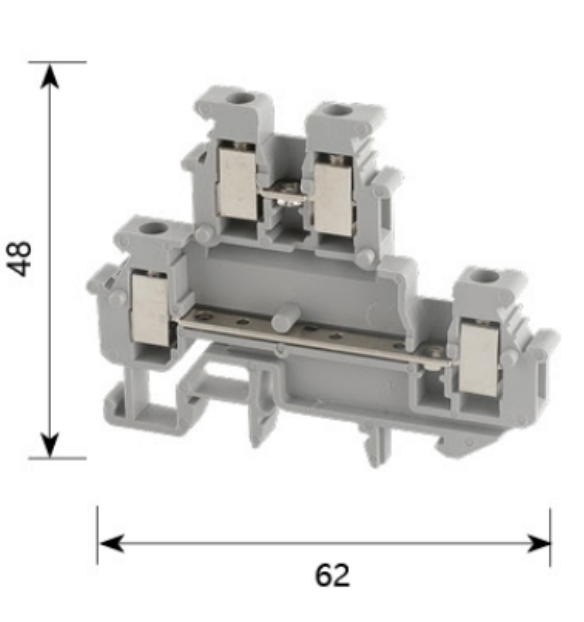

MBKKB2.5
- 截面积: 2.5mm²
- 额定电流: 32A
- 额定电压: 500V
- 导线范围: 刚性 0.2–4mm² / 柔性 0.2–2.5mm²
- 厚度: 5.2mm
Technical specifications
| Model | Cross-section | Rated current | Rated voltage | Conductor range | Thickness |
|---|---|---|---|---|---|

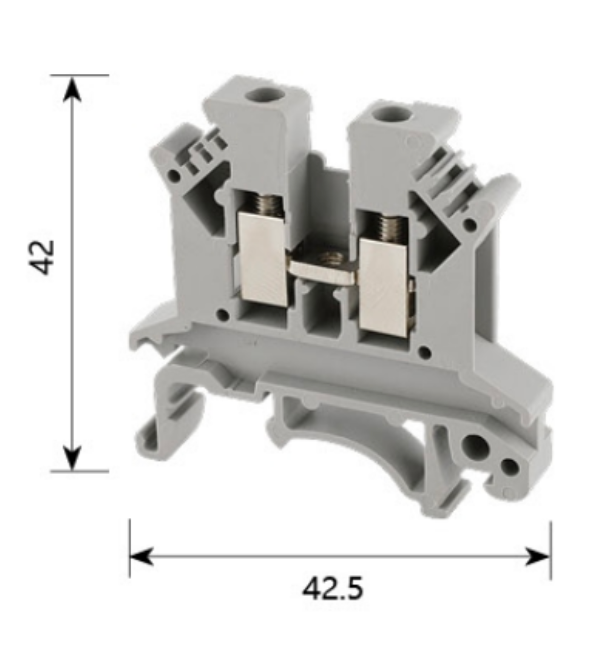

| UK-2.5B | 2.5mm² | 32A | 800V | 刚性 0.2–4mm² / 柔性 0.2–2.5mm² | 6.2mm |
| MBKKB2.5 | 2.5mm² | 32A | 500V | 刚性 0.2–4mm² / 柔性 0.2–2.5mm² | 5.2mm |

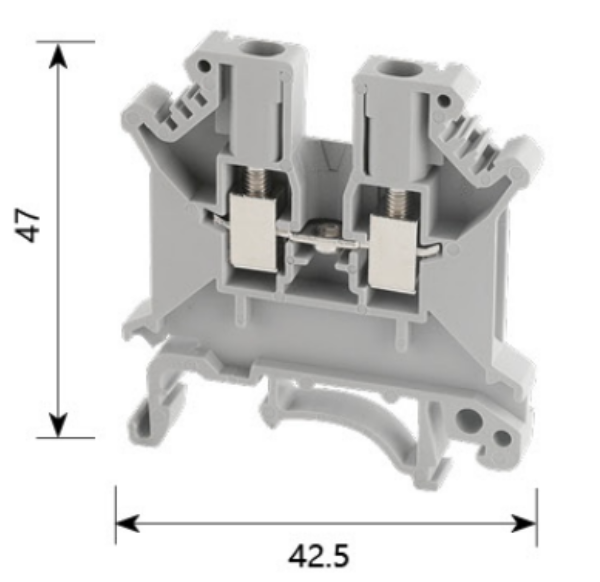

| UK-3N | — | 32A | 800V | 刚性 0.2–4mm² / 柔性 0.2–2.5mm² | 5.2mm |
Application fields
⚡
Power distribution
Distribution boards, switchgear, etc.
🏭
Industrial automation
PLC and automated production lines.
🏢
Building electrical
Building automation and lighting control.
🚗
Transportation
Rail transit and marine electrical.
